Outdoor or indoor use.
For use with single wire armour ‘W’, wire braid ‘X’, steel tapearmour ‘Z’, elastomer and plastic insulated cables.
Provides armour clamping using one clamping arrangement for allarmour / braid types.
Provides a cable retention and low smoke and fume, zero halogenseal onto the cables outer sheath.
Service hotline：
0523-88317000 88318288
-
Technical Data
? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-7 and IEC/EN 60079-31.
? Ingress Protection: IP66, IP67 and IP 68* (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X.
? Operating Temperature Range: -60°C to +140°C.
? Material: brass, nickel plated brass or stainless steel 304、316L
? Ex-marking:
II 2 GD
Ex e IIC Gb Ex tb IIIC Db IP68 -

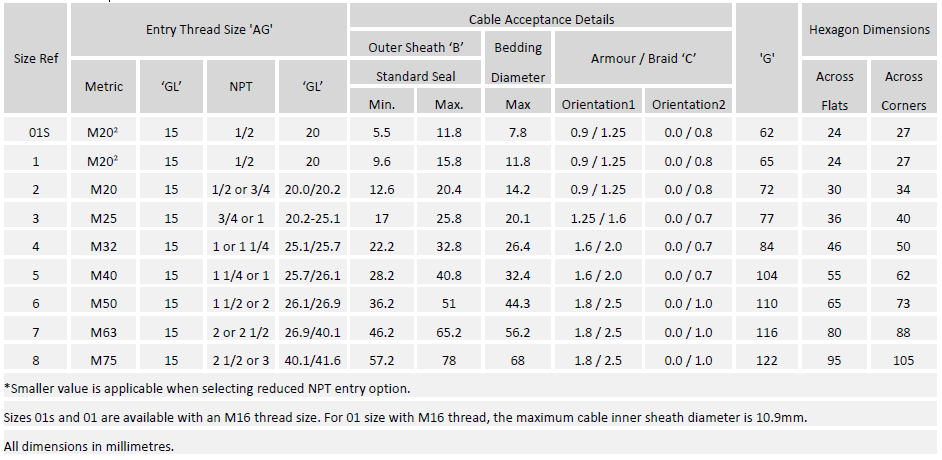

Selection table
-

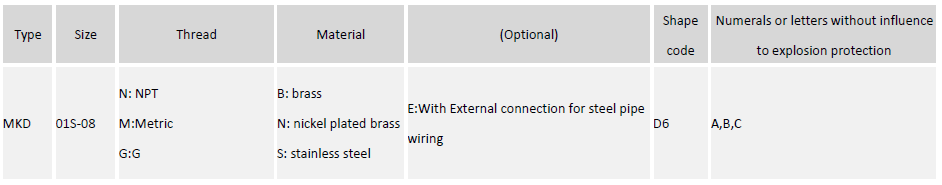

Ordering information
|
