DWBFJ- CF series Centrifugal Fan

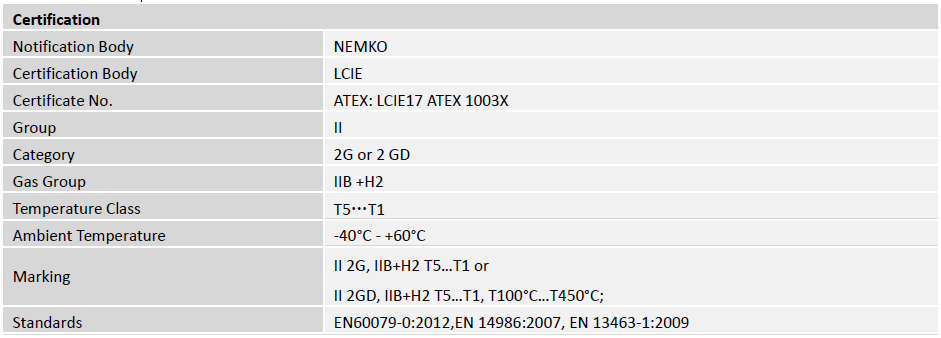

Type DWBFJ-CF centrifugal fan is designed according to EN 14986, EN 13463-1 standards. The product is certified for installation in Zone 1 and Zone 2 for gas environment, Zone 21 and Zone 22 for dust environment.Type DWBFJ-CF centrifugal fan has stainless steel or carbon steel material housing fitted with stainless steel, aluminum or sheet molding compound(SMC) which is also called glass-fiber reinforced polyester (GRP) material impeller. The impeller is backward or forward. The fan is driven directly by an ATEX certified motor.The Ex d motors are equipped with PTC thermistors for optimum motor protection.Three phase , IP55 or IP65,insulation class F, can be frequency conversion motor.
Type DWBFJ-CF centrifugal fan is typically used for general HVAC(exhausting, filtration, air return and supply etc.) and industrial applications where large volumes of clean air are required at low to moderate pressure. This product specially applies to Oil & Gas, Offshore Platform, Chemical, Petrochemical, Refinery and Marine Industries etc.

download

Service hotline:
0523-88317000 88318288

Parameter

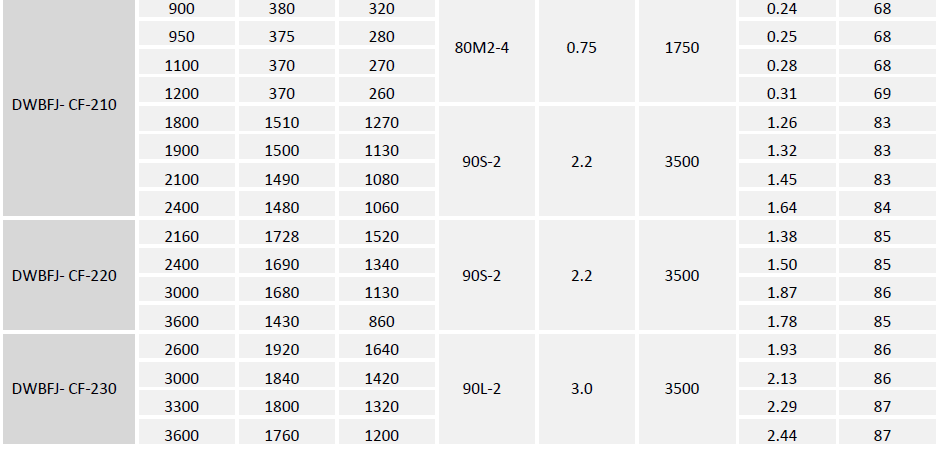

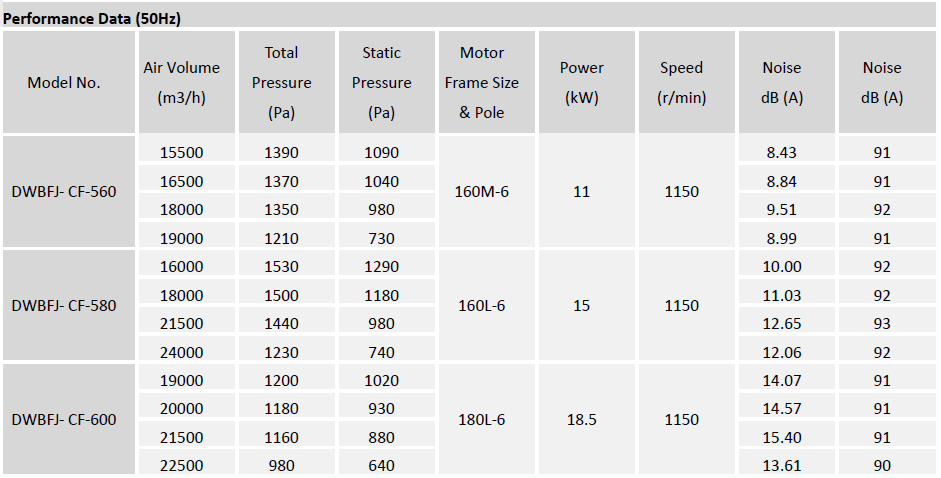

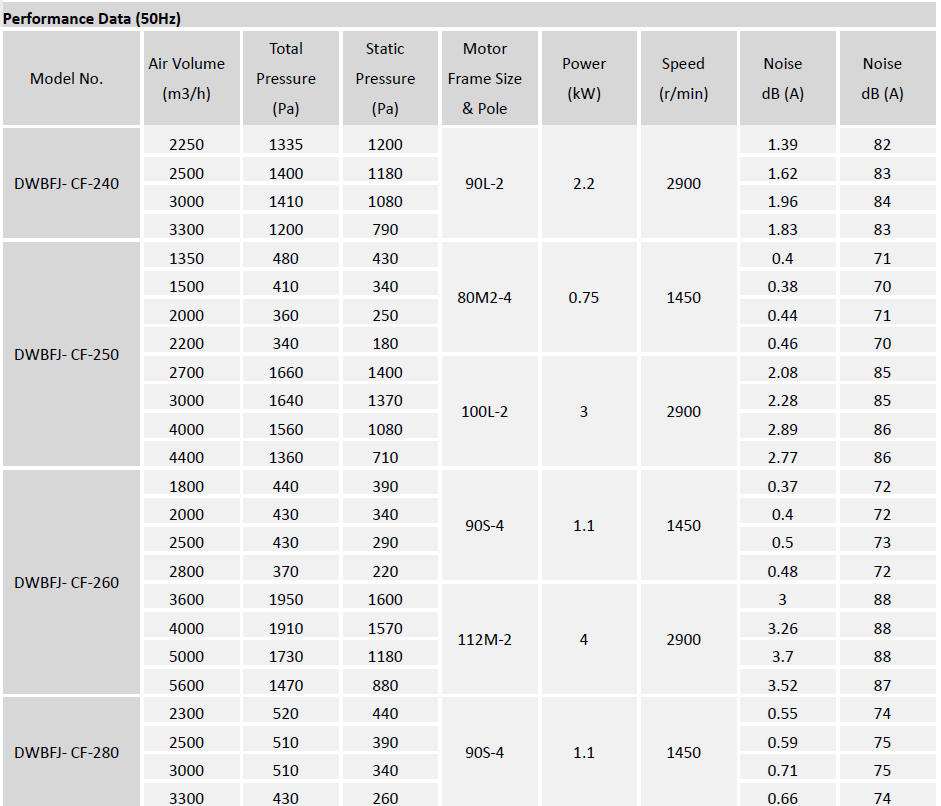

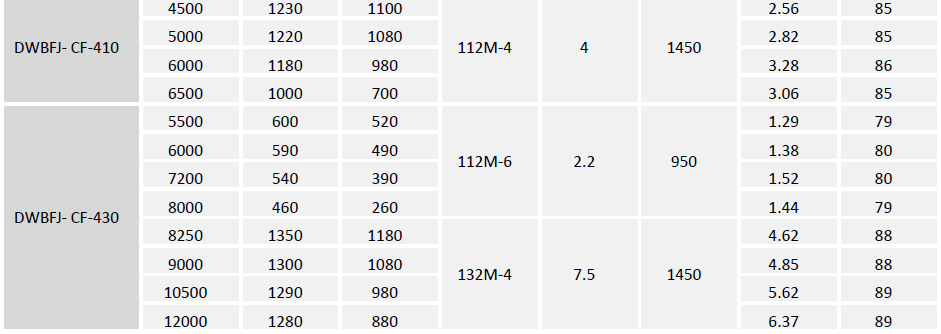

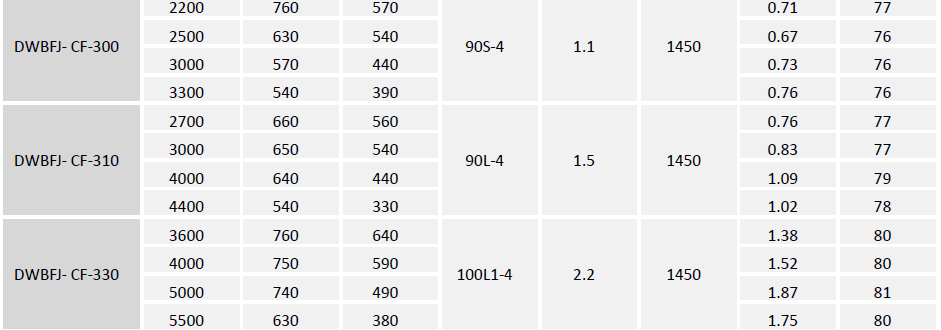

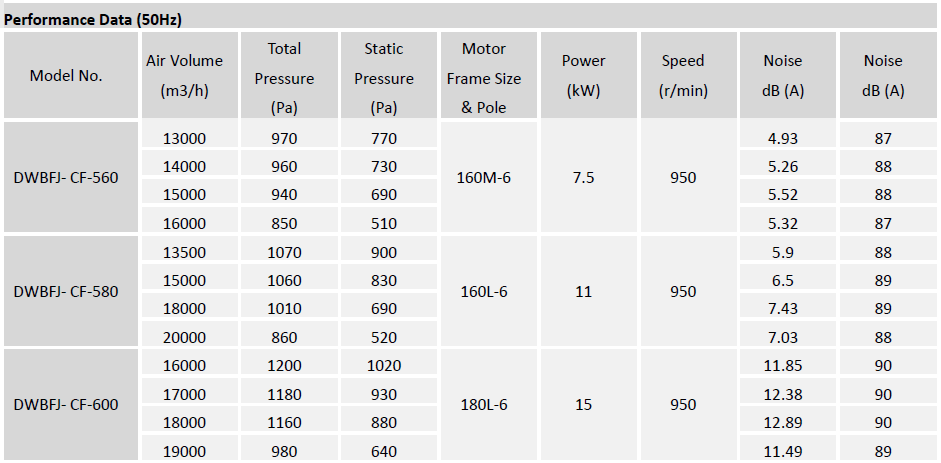

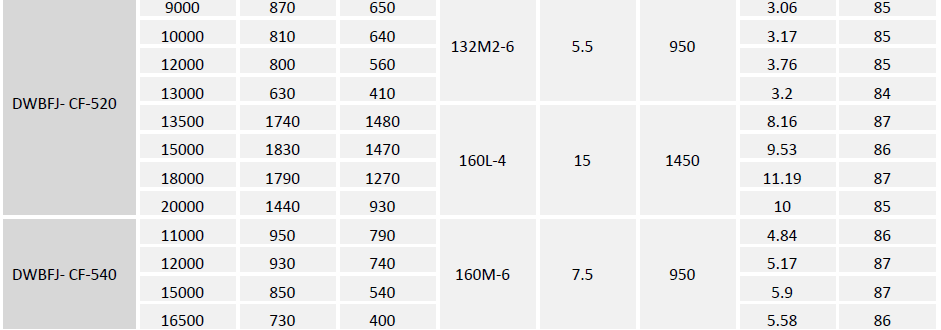

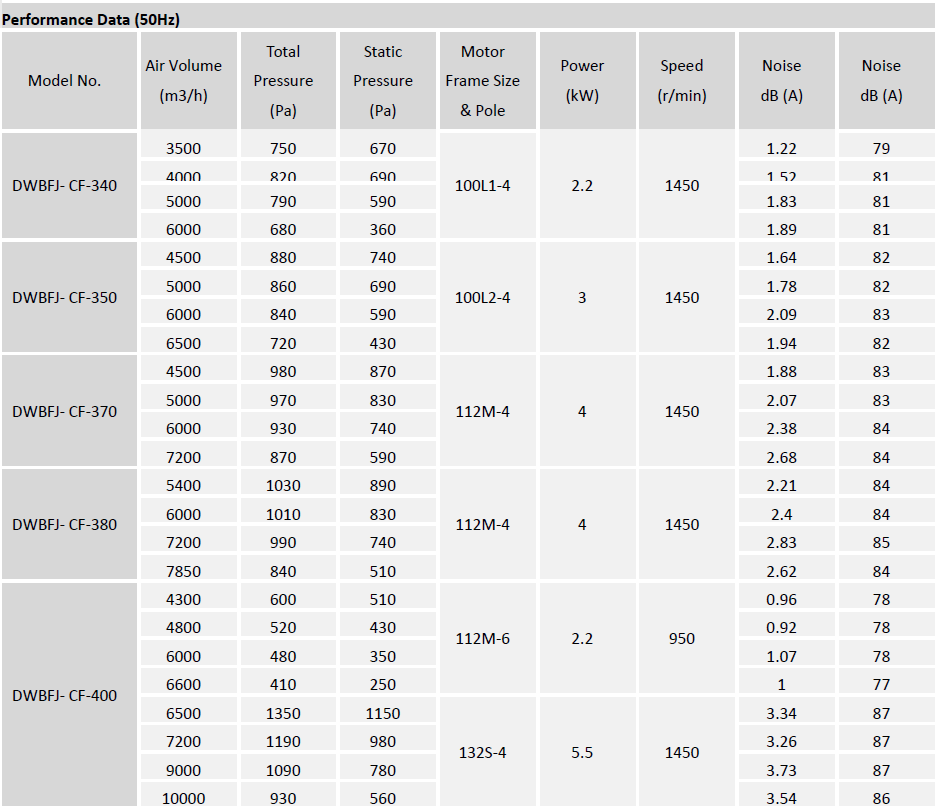

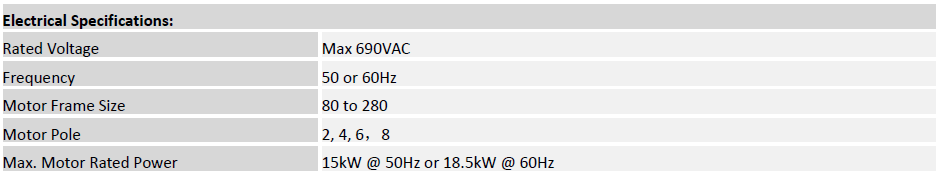

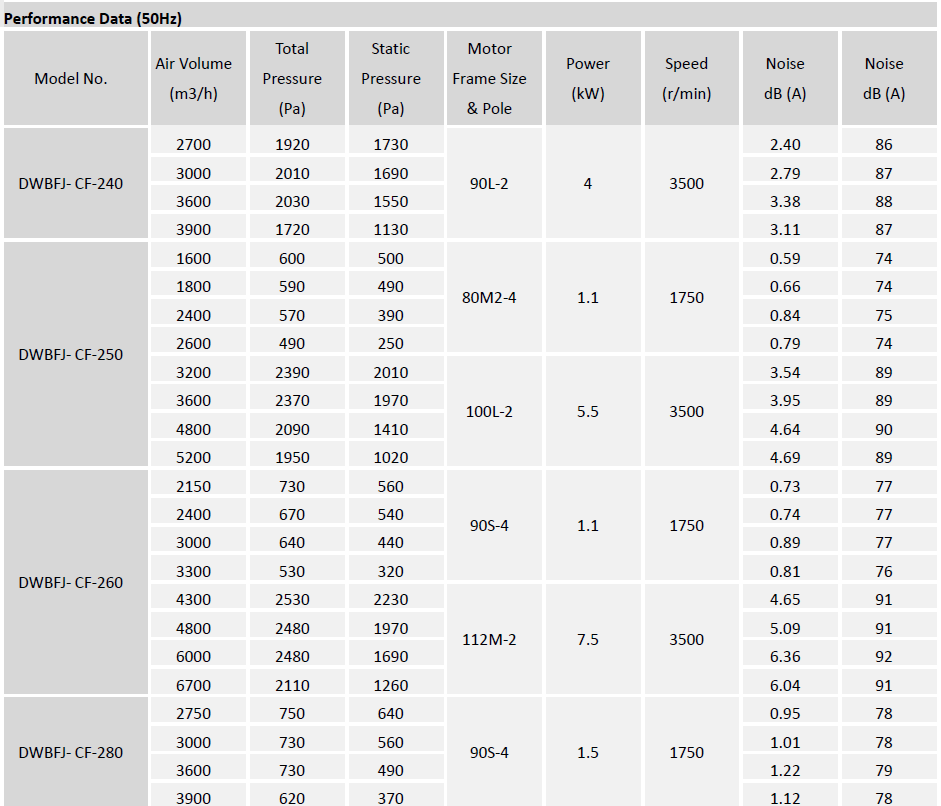

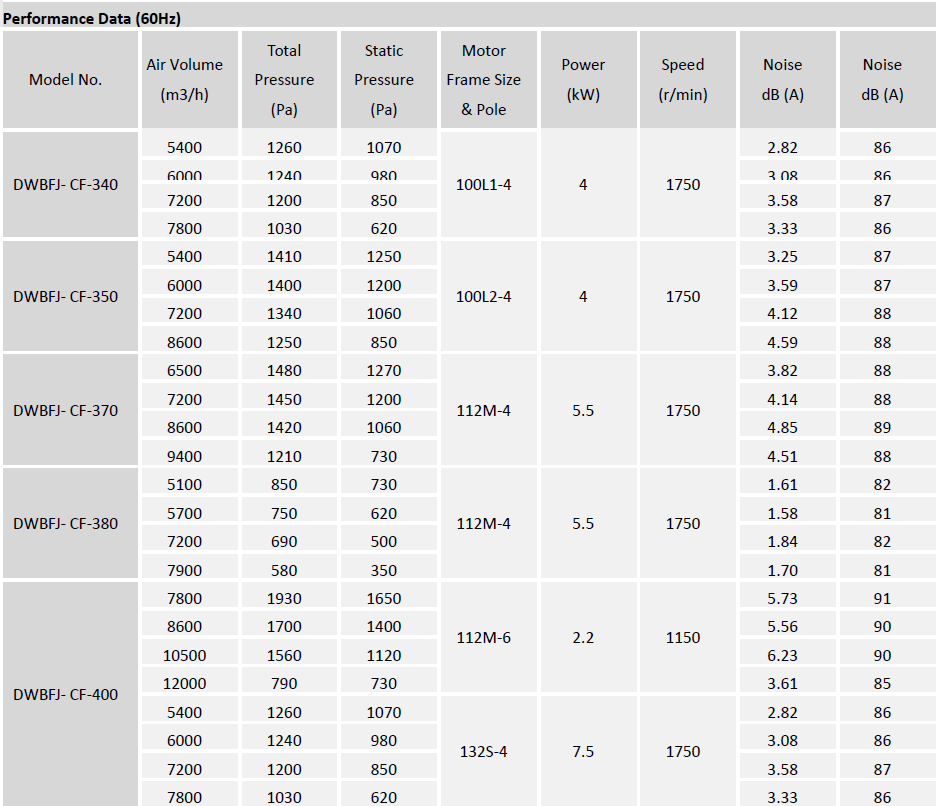

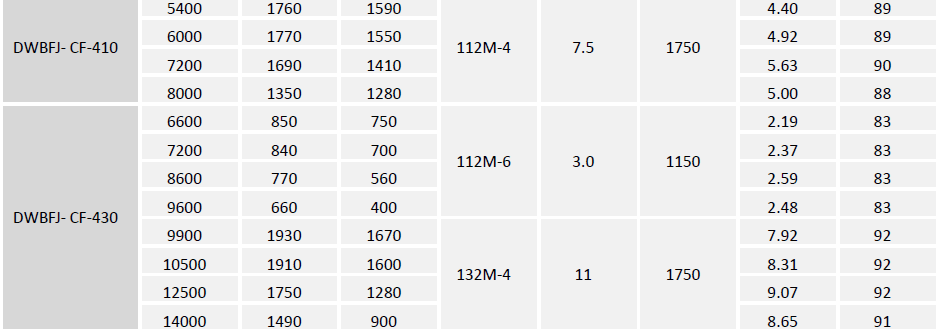

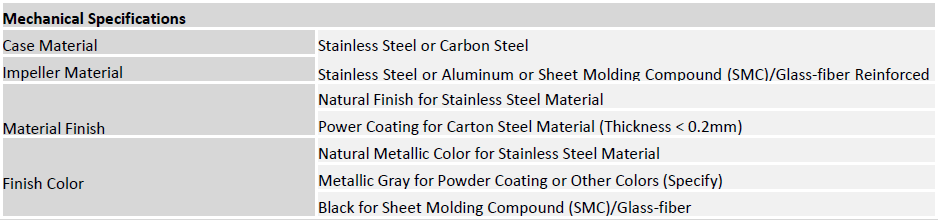

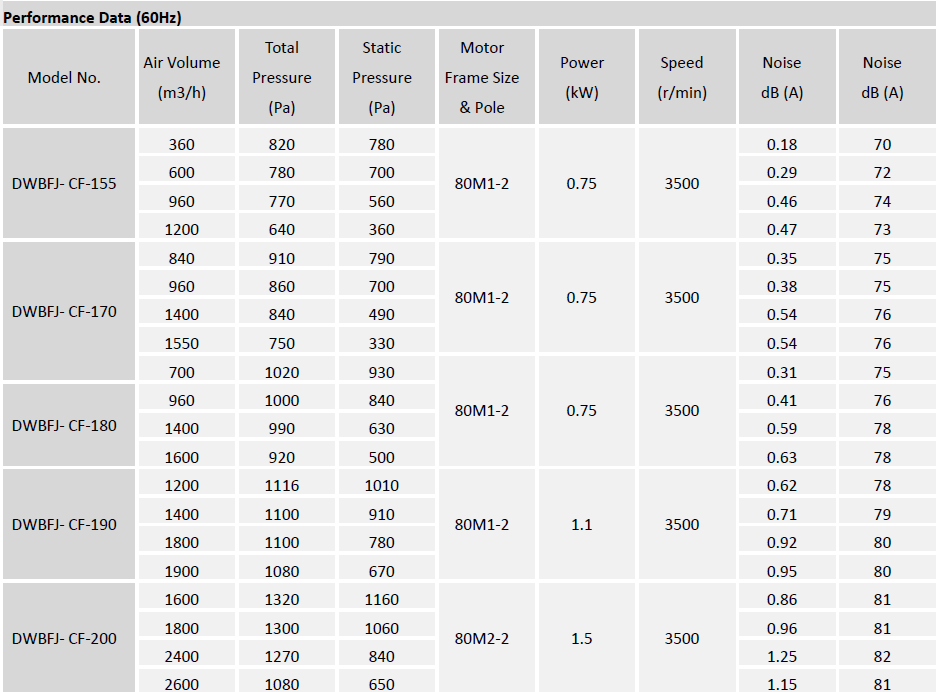

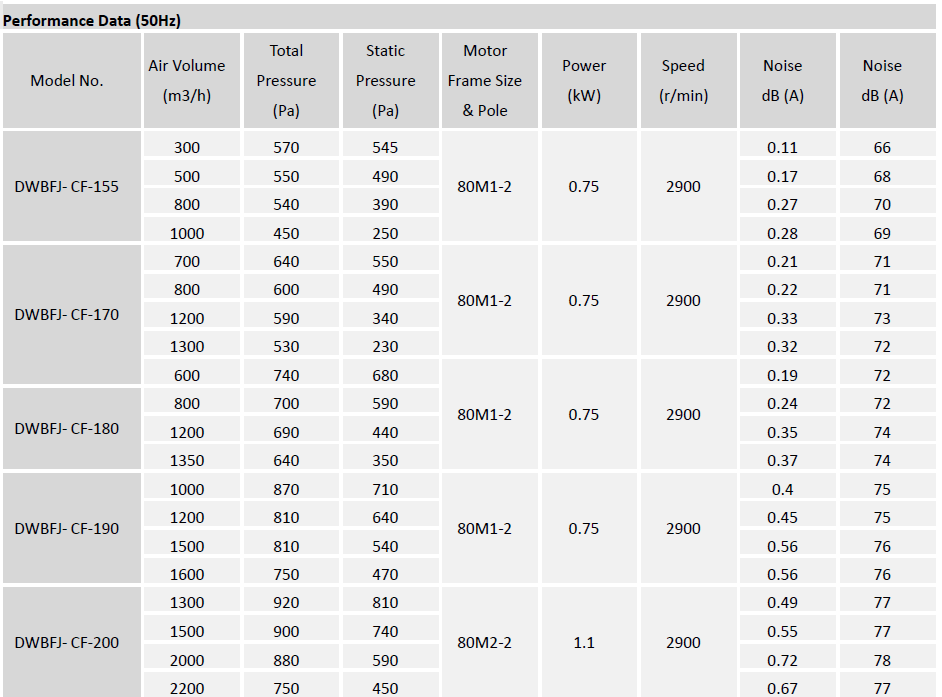

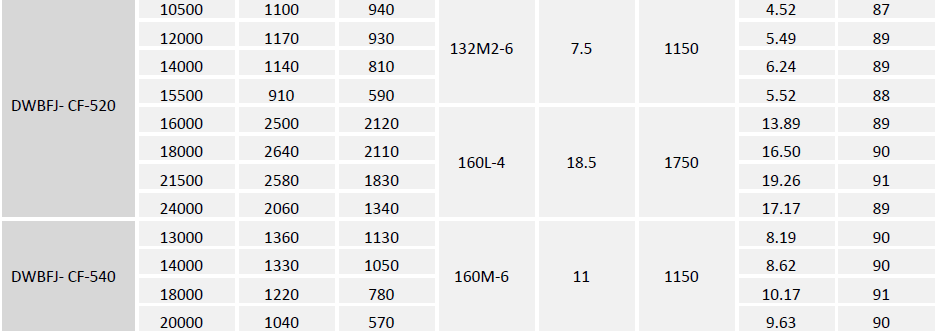

  • Technical parameter

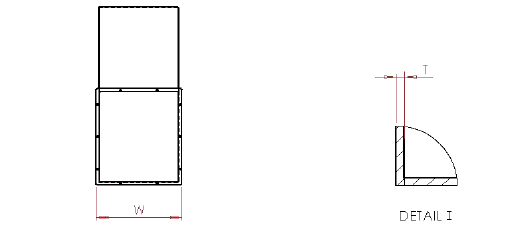

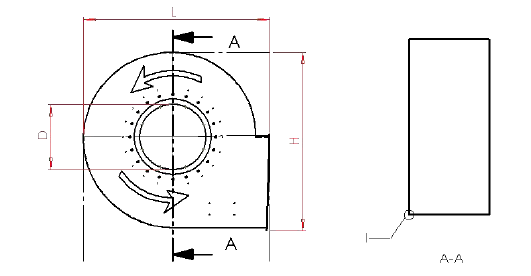

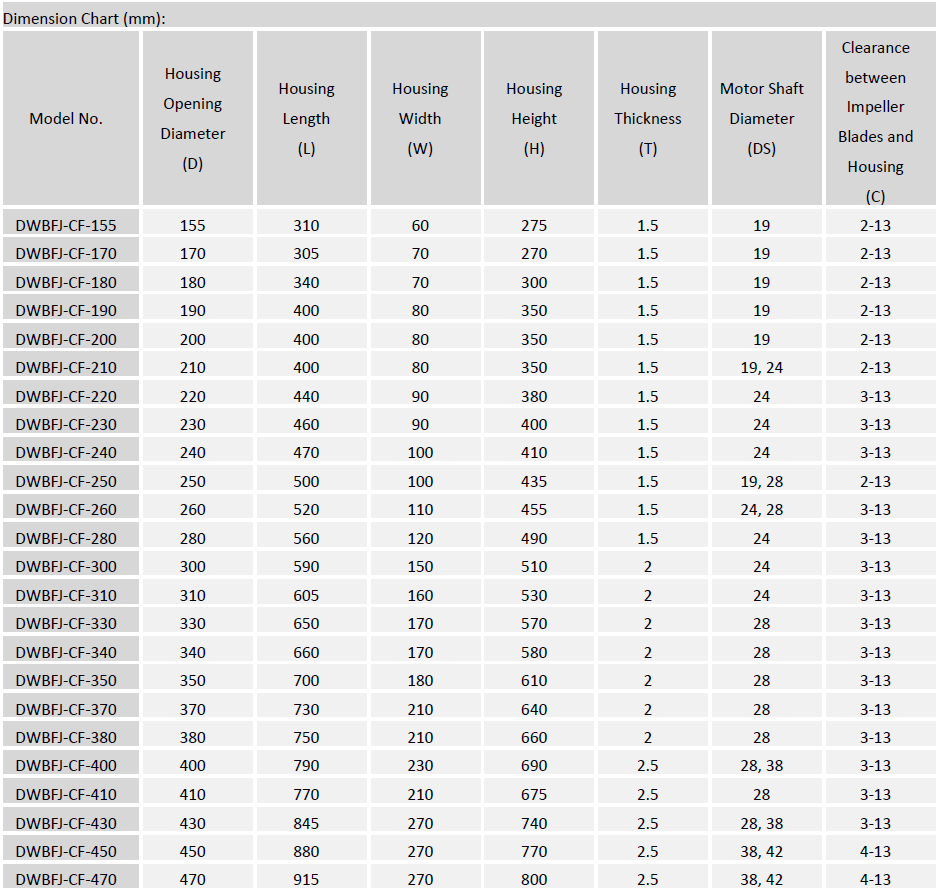

  • Installation Dimension

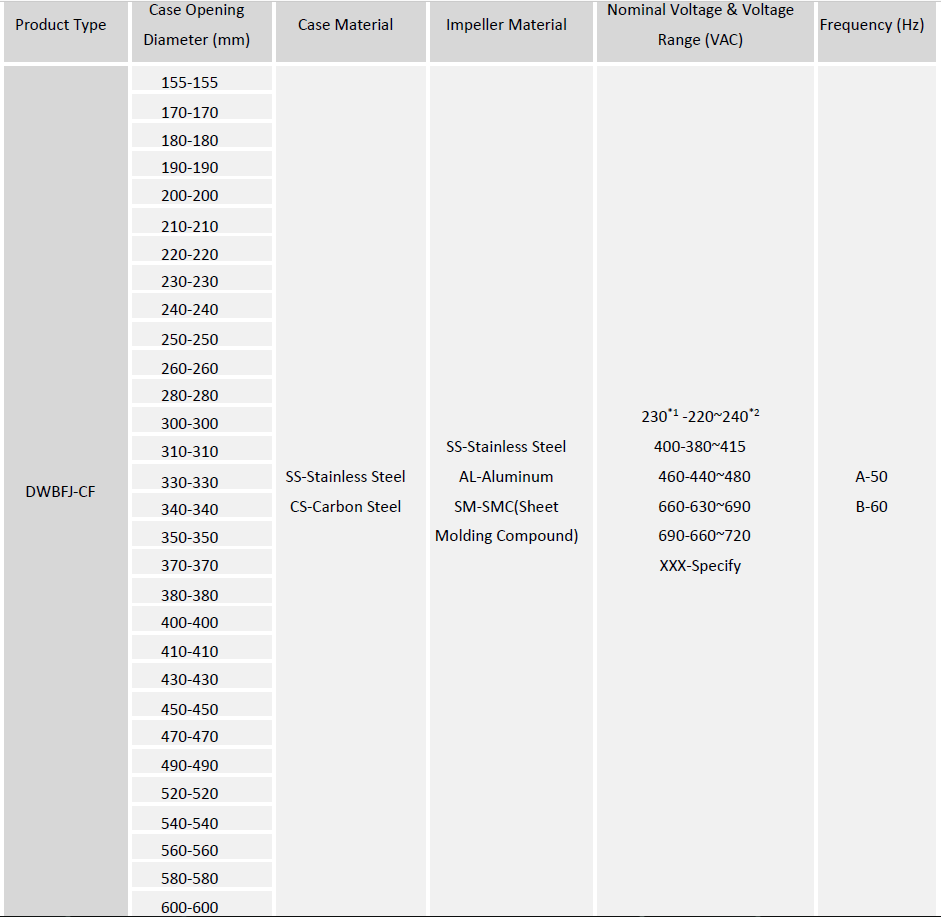

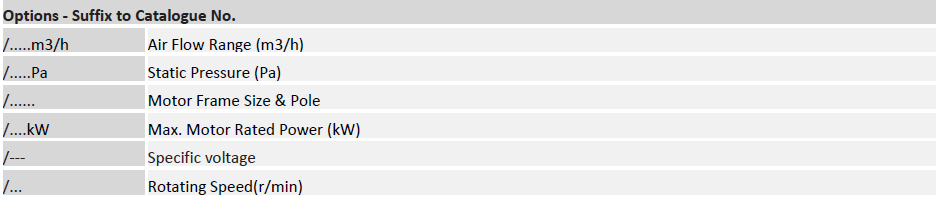

  • Order Specifications Table

    Please refer to the below table for ordering. If you need more information, please contact our sales representative for assistance.

    Note 1: The data before the dash represents the nominal voltage.
    Note 2: The data after the dash represents the voltage range.
